Quick Details

  • Condition: New
  • Type: Piston
  • Configuration: Stationary
  • Power Source: AC Power
  • Lubrication Style: Oil-less
  • Mute: No
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: HENGDA
  • Model Number: H1031
  • Voltage: 380V(can be adjusted according to client's request)
  • Dimension(L*W*H): 1800X850X1110mm
  • Weight: 660Kg
  • Certification: CE,GC, IAF,CNAS,ISO9001:2000
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Keyword: silent air compressor price
  • Electric parts: Schneider
  • Bearing: Hengda Air Compressor
  • Motor:: Siemens
  • Air valve:: Hoerbiger
  • Cooling type:: Air cooling .
  • PLC control system CPU: Siemens
  • Output pressure switch: Schneider
  • Electric control box: Nanjing Hengda
  • certification: CE,ISO9001:2000,GC,IAF,CNAS

Packaging & Delivery

Packaging Details: wooden case package
Delivery Detail: 15days
Product introduction

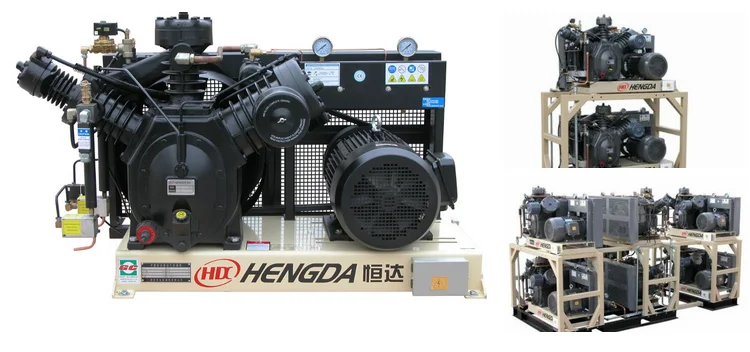

Cheap price chinese manufacturer 4.5kw mini silent 3 cylinder heavy duty industrial piston type air compressor with CE
1, cast iron structure: The air cylinder and the crank case use 100% cast iron material, guarantees the unit the service life.

2, air cylinder: The deep wing piece type, the independent casting air cylinder may 360 degrees eliminations produce compressed air quantity of heat. Between the air cylinder and the crank case with the bold fastening, is advantageous for the routine maintenance and the maintenance.
3, offcenter unloading gear: Release from cold and in air cylinder's air, prevents the unit overload start.
4, adjusting device: All high-pressured unit disposes the automatic start/engine off control, moreover may choose the constant speed control and the dual controls.
5, self-refrigeration draindown system: The self-refrigeration wash water valve installs on the exhaust separator/valve's support, when the compressor engine off or unloads when the constant speed control mode, discharges the condensed water automatically.
9th, electrical machinery: TEFC, the IP54 electrical machinery, conforms to the IEC standard.
6, actuation: The entire seal shroud “V” the belt transmission, the movement is steady.
7, foundation: On the Chungking Steel Works structure's foundation opens has the groove, the electrical machinery may move, is advantageous for the fastening “V” the leather belt.

Product features



Cheap price chinese manufacturer 4.5kw mini silent 3 cylinder heavy duty industrial piston type air compressor with CE
40bar air compressor
Model
Host Model
Air capacity
(Nm3/min)
Working pressure(Mpa)
Power(KW)
speed(r.p.m)
34WH-1.0/40


H1031
1.0
4.0
15
790
4-34WH-4.0/40
4.0
4.0
4×15
790
6-34WH-6.0/40
6.0
4.0
6×15
790
52SH-2.0/40

H2041
2.0
4.0
22
695
2-52SH-4.0/40
4.0
4.0
2×22
695
49SH-3.0/40

H2541
3.0
4.0
30
690
2-49SH-6.0/40 (vertical)
6.0
4.0
2×30
690
2-49SH-6.0/40 (horizontal)
6.0
4.0
2×30
690

Products Details

Air Compressor System Connection Diagram

Packaging & Shipping

Our Certificate



Our clients

About us

 Our Factory

Related products



30-40bar air compressor

Work pressure:30-40bar

Air capacity:0.7-6M3/Min

High pressure air compressor

Work pressure:45-200bar

Air capacity:0.3-6M3/Min

oil-free air compressor

Work pressure:30-40bar

Air capacity:1.0-2.2M3/Min

Screw air compressor

Work pressure:7-13bar
Air capacity:0.8-40M3/Min

Booster air compressor

7-13bar air pressure can be

pressurized up to 60-400bar

low pressure air compressor

Work pressure:8-17bar
Air capacity:0.2-6M3/Min
