Quick Details

  • Condition: New
  • Application: Bottle
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: TONGDA
  • Model Number: HTII-3L/6
  • Voltage: 380V/50HZ
  • Power(W): 30KW
  • Dimension(L*W*H): 5*2.4*3.8
  • Weight: 14ton
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Keywords: plastic bottle blowing machine
  • Color: Blue/yellow/white/orange
  • Material application: PP/PE/LDPE/HDPE/LLDPE/ABS
  • Station: double
  • MAX.Product Volume: 0.35L
  • Output of HDPE: 70kg/h
  • Blowing pressure: 0.6Mpa
  • Air consumption: 0.4M3/Min
  • Cooling water pressure: 0.3Mpa
  • Water consumption: 80L/Min

Packaging & Delivery

Packaging Details: PE film, Wooden box, Wooden/Steel
Delivery Detail: Shipped in 75 days after payment

cheap price automatic pe plastic water bottle extrusion blowing machine

Product Description

It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

Technical Parameters



cheap price automatic pe plastic water bottle extrusion blowing machine
Technical specification
Model
HTII-3L/6
Station
Double
Max. Product Volume
(L)
0.35L
Dry cycle
(pc/h)
800*2
Screw Diameter
(mm)
70
Screw L/D ratio
(L/D)
25
Screw drive power
(KW)
22
Max. Output of HDPE
(Kg/hr)
70
Oil pump drive power
(KW)
11
Clamping force
(KN)
76
Platen distance
(mm)
160~320
Max. Size of Mold(W*H)
(mm)
450*250
Die heat power
(KW)
4.3
Blowing pressure
(Mpa)
0.6
Air volume
(M3/MIN)
0.4
Cooling water pressure
(Mpa)
0.2~0.3
Water consumption
(L/MIN)
80
Size of machine ( L*W*H)
(m)
3.2*2.7*2.5
Weight of machine
(TON)
6

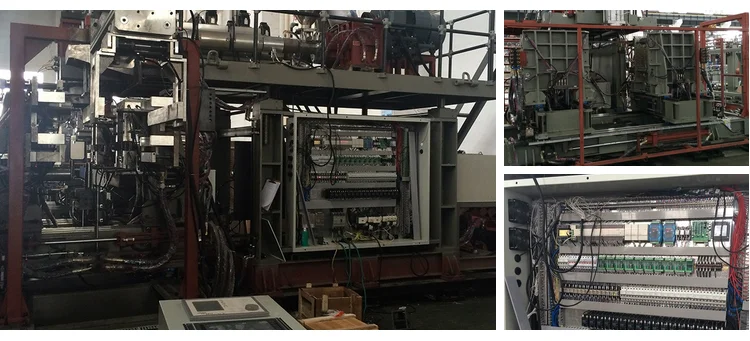

Details images

cheap price automatic pe plastic water bottle extrusion blowing machine
Extruson blow molding machine suppliers of main parts:



a) Hydraulic Parts
Name
Supplier


a) Hydraulic Parts
Oil Pump
PARKER or SUNNY, America
Valve
YUKEN or SUNNY
Hose, Joint
PARKER SIR
Sealer
Top DZ Europe





b) Electrical Parts
Microcomputer Control System
MITSUBISHI PLC, Japan
Touch Screen
HITECH color screen, Taiwan
Temperature Controller
MITSUBISHI, Japan
Conductor
SCHNEIDER
Air Switch
SCHNEIDER
Motor
SIMENS BEIDE Asynchronous Motor
Power Resource
MEAN WELL, Taiwan
Inverter
MITSUBISHI
c) Pneumatic Parts
Solenoid Valve
FESTO, Germany
Cylinder
FESTO, Germany

Main Features

1) Simple structure in linear type ,easy in installation .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

Packaging




Our Services

1> The machine will be tested and checked at our workshop before delivery.

2>After one year, we will supply accessories are provided only one the cost price.

3>Free production technology and process configuration.

4>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.

5>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first

6>We will reply you within 24 hours

Certifications

About us

Suzhou Tongda Mould Co., LTD is located in zhangjiagang city TangQiao economic development zone and the traffic is developed.


The company fusion technology, Western Europe professional design and production, sales three categories and 23 kinds of series and one hundred and eighteen kinds of specifications and types of automatic bottle blowing machines, blow molding blow molding machines and the company is in jiangsu province beverage, plastic machinery enterprise one of the export base.

The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
