pet bottle blowing machine full automatic 200ml

  • 1 - 2 Sets
    $93,000.00
  • >=3 Sets
    $92,500.00
Model Number:
CM-G10
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PET
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
Faygo
Voltage:
380V/220V
Dimension(L*W*H):
4200 * 3270 * 2190 mm
Certification:
CE;GC;IAF;ISO9001:2000
Productivity:
11000-15000 PCS/H
Product Volume:
PET
Product Body diameter:
no more than 90mm
Product Neck diameter:
18-38 mm
Main machine power:
220KW
Air system:
12.0m3/min 3.0Mpa air compressor
Air dryer:
12.0m3/min 3.0Mpa air dryer System
Machine size:
4200 * 3270 * 2190 mm
Preform unscrambler size:
1800 * 500 * 2800 mm
Cooling water:
3Hp, 5Hp, more or less
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
220Kw/100Kw
Weight:
9000Kg
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wrapping
Port
Shanghai Port; Zhangjiagang Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

pet bottle blowing machine full automatic 200ml

Product Description



PLEASE FEEL FREE TO CONTACT US!

  +86 139 5244 7308
 faygocn faygoplastchina
 3256762800 +86 512 56762808

SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: preform elevator, preform unscrambler and host machine.



Technical parameters
TypeFG4FG6FG8
Bottle SpecificationsMould number(piece)468
Max capacity(BPH)6500-72009000-1000012000-13000
maxi volume (mL)200020002000
maxi height (mm)328328328
maxi diameter (mm)105105105
preform SpecificationsSuitable inner bottle neck (mm)20-2520-2520-25
preform max length (mm)150150150
ElectricityTotal installation power (kw)515197
Voltage / frequency (V / Hz)380v,50hz380v,50hz380v,50hz
Air compressorPressure(bar)303030
Capacity(m³/min)4-64-64-6
Mold waterpressure(bar)4-64-64-6
Suitable temperature range (℃)6-136-136-13
Flow (L / min)4545

45



Oven waterpressure(bar)4-64-64-6
Suitable temperature range (℃)6-136-136-13
Flow (L / min)222222
Machine Specificationhost machine dimension (m) (LxWxH)3.3X1.2.34.3X1X2.34.8X1X2.3
Weight (Kg)32004000

4500

Main Features

FG4 is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design,small space occupation, less noise and high stability,meanwhile conforms to national beverage sanitary standards,This machine symbolizes the highest level of national linear blowing machines, It Is the ideal bottle making equipment for medium and large enterprises.

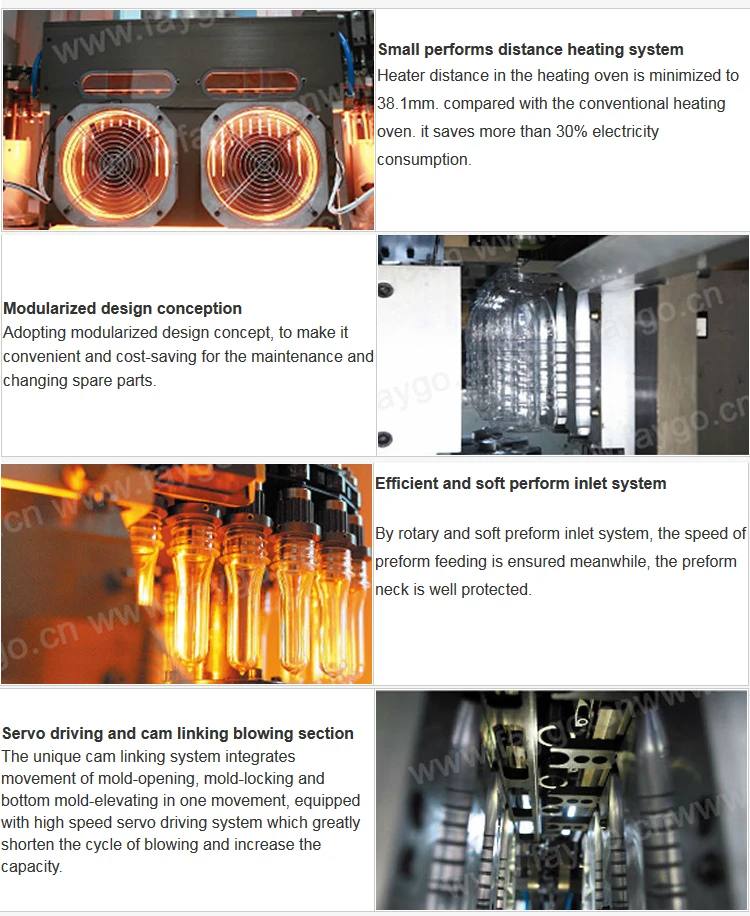

Detailed Images

One Stop Station Services

1) Stand-by engineers team to provide overseas installation and commissioning service.

2) 1 year warranty. During warranty, we provide free of charge for repairing cost.

3) Lifetime maintenance. After-sales department can provide life long maintenance service.
Packaging & Shipping

Delivery time:

60 days After payment

Our Certificate

Our clients




About us



FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
