30ml-1000ml Plastic bottle injection blow molding machine price

  • >=1 Sets
    $45,000.00
Production Capacity (BPH):
2500
Bottle Volume (ml):
5-1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PE
Condition:
New
Application:
Bottle
Blow Moulding Type:
Injection Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
FAYGO
Voltage:
380V/50HZ
Dimension(L*W*H):
3*1.3*1.7
Certification:
ISO9001,CE
Power (kW):
20
Weight (KG):
3500
Automation:
Automatic
Key Selling Points:
Long Service Life
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant
Local Service Location:
None
Showroom Location:
None
Color:
Blue/yellow/white/orange
Material:
PE/PP/AS/PET-G/ABS/AS
Shipping:
By sea or By train
Suitable bottle size:
3ml-1000ml
Product maximum length:
220mm
Product maximum diameter:
120mm
Cooling water pressure:
0.3-0.4MPa
Compressed air pressure:
0.7-1.2MPa
System pressure:
14Map
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
PE film, Wooden box, Wooden/Steel
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated

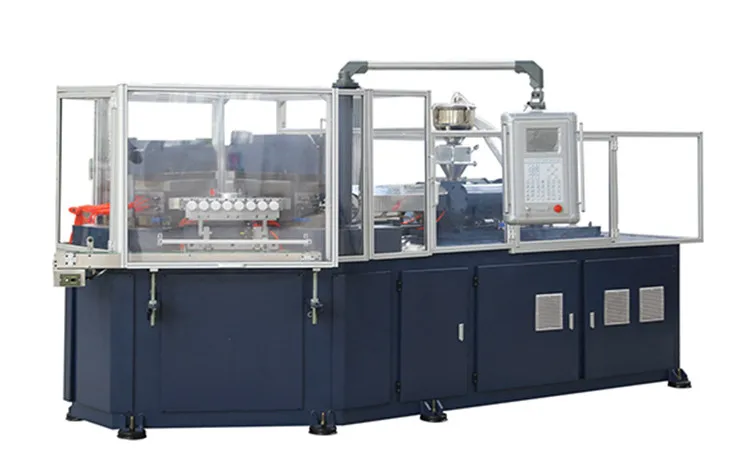

Product Description

??

It is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.

Specifications

Name
Unit
FG40
FG60
FG80
FG100
Screw diameter
mm
40
45
50/55
60
L/D Ratio
22:1
22:1
22:1
22:1
Injection Capacity
9
176
260
314
415
Heating power
KW
7.5
10
10.8
12
Heating section
3+N
3+N
4+N
4+N
Injection mould clamping force
KN
400
600
800
1000
The injection mold opening stroke
mm
140
140
140
150
Mould clamping force
KN
60
100
120
150
Blow mold opening stroke
mm
140
140
140
150
Injection stroke
mm
160
160
160
160
Mold Size
mm
480*340
600*390
800*400
1000*460
Min. Thickness of Mold
mm
180
240
280
280
Main motor power
KW
11
18.5
22
30
Reject Stroke
mm
210
230
230
230
Dry Cycle Time
s
3.5
4
4
4
Total power
KW
20
30
40
45
Operating power
%
52-70
52-70
52-70
52-70
System pressure
Map
14
14
14
14
Compressed air pressure
MPa
0.7-1.2
0.7-1.2
0.7-1.2
0.7-1.2
Cooling water pressure
MPa
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Product maximum diameter
mm
120
120
120
120
Product maximum length
mm
200
220
220
220
Product volume
ml
3-800
3-800
3-1000
3-1000
Dimensions
M
3*1.3*1.7
3.5*1.4*1.8
4*1.6*2
4.5*1.8*2
Equipment weight
Ton
3.5
5
8
10

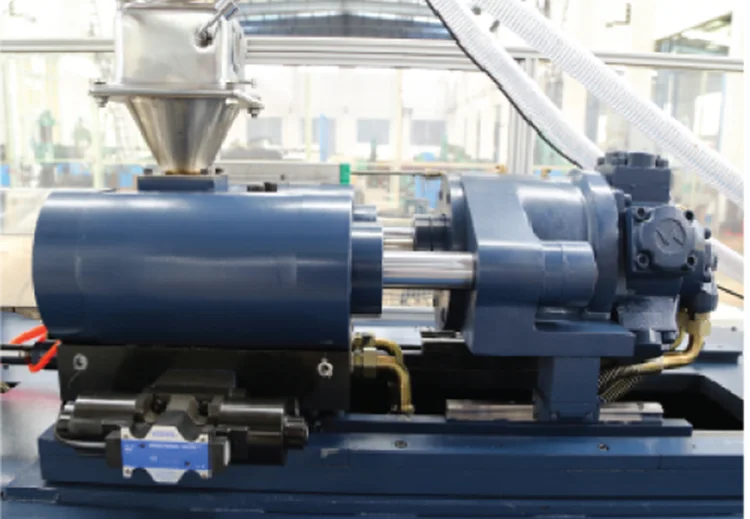

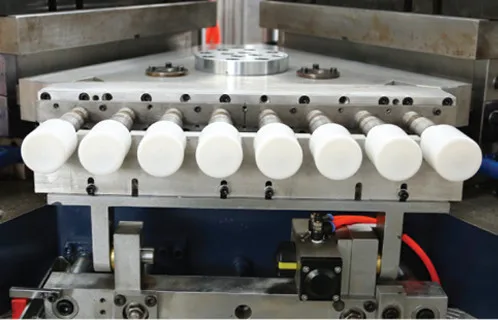

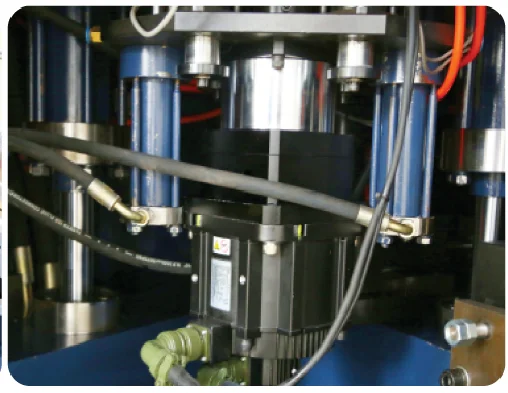

Detailed Images

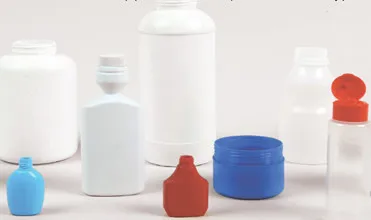

Products size

??

Bottle Size

1.Volume:5ML-1000ML

2.Neck Dia:10-45MM

3.Height:35-200MM

4.Body Dia:45-90MM

Packing & Delivery

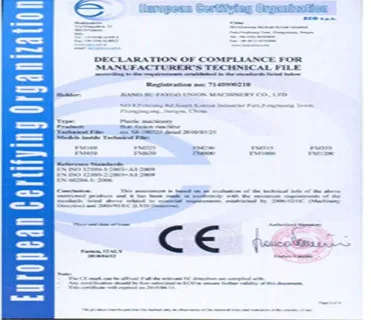

Certifications
Our customers

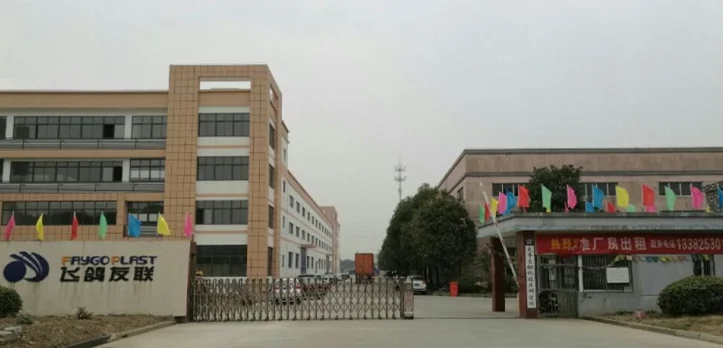

Our Company

FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.

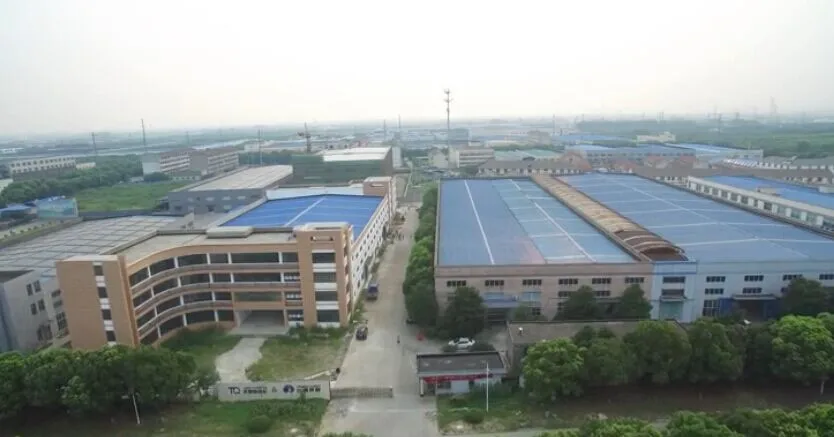

Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
