china suppliers all electric Best 50 ton 200 ton 450 ton eva pu plastic injection blow moulding machine

FOB Reference Price:Get Latest Price
$28,000.00 - $75,000.00 / Set | 1 Set/Sets (Min. Order)
Clamping Force:
1180KN
Report Suspicious Activity
Overview
Quick Details
Style:
Horizontal
Condition:
New
Plastic Type:
Thermoplastic
Type:
Injection Blow Molding
Place of Origin:
Jiangsu, China
Model Number:
FG40/50/60/80/90
Brand Name:
Faygo
Automatic:
Yes
Certification:
CE ISO9001
Warranty:
1 YEAR, 12 Months
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Name:
best eva all electric injection moulding machine
Color:
customer oriented
material:
PP/PE/PS
suitable bottle size:
5ml-1000ml
product max length:
220mm
product max diameter:
120mm
cooling water pressure:
0.3-0.4Mpa
air compressor:
0.7-1.2Mpa
system pressure:
14Mpa
Injection Weight:
300g/s ~ 1500g/s
Injection Rate:
300g/s ~ 1200g/s
Opening Stroke:
700mm
Power(W):
30KW
Supply Ability
Supply Ability:
38 Set/Sets per Year best eva all electric injection moulding machine
Packaging & Delivery
Packaging Details
covered by PE film or by wooden box
Port
Shanghai Port
Product Description


china suppliers all electric Best 50 ton 200 ton 450 ton eva pu plastic injection blow moulding machine

It is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.

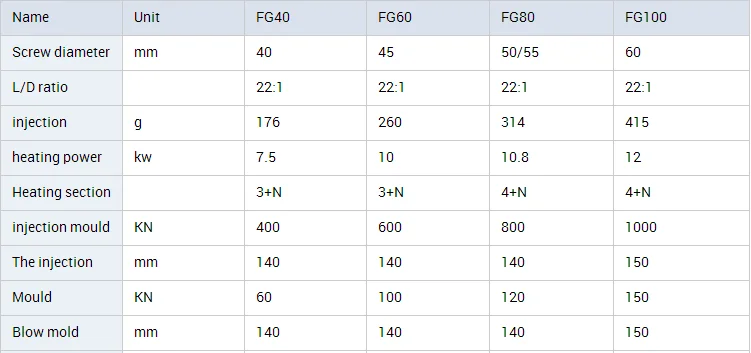

Specifications

Injection Stroke
mm
160
160
160
160
Mould size
mm
480*340
600*390
800*400
1000*460
Min. thickness
mm
180
240
280
280
Main motor
kw
11
18.5
22
30
Reject Stroke
mm
210
230
230
230
Dry Cycle Time
s
3.5
4
4
4
Total power
kw
20
30
40
45
Operating
%
52-70
52-70
52-70
52-70
System
Mao
14
14
14
14
Compressed air
Mpa
0.7-1.2
0.7-1.2
0.7-1.2
0.7-1.2
Cooling water
Mpa
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Product dia
mm
120
120
120
120
Product height
mm
200
220
220
220
Valume
ml
3-800
3-800
3-1000
3-1000
Dimensions
M
3*1.3*1.7
3.5*1.4*1.8
4*1.6*2
4.5*1.8*2
Equipment
Ton
3.5
5
8
10

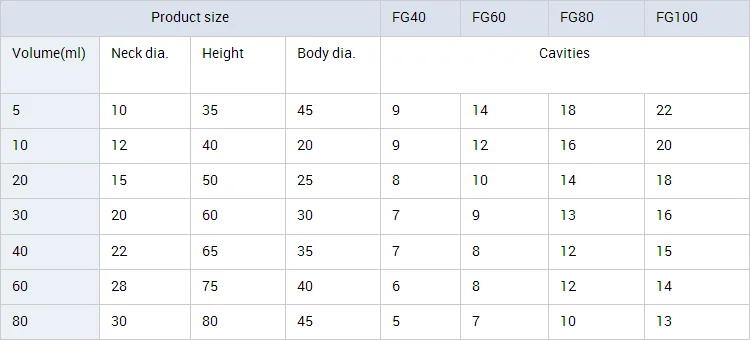

Product size

china suppliers all electric Best 50 ton 200 ton 450 ton eva pu plastic injection blow moulding machine

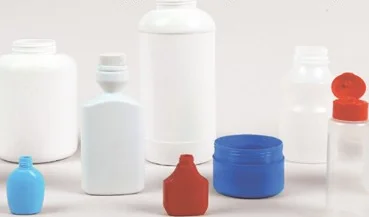

Bottle Size
1.Volume:5ML-1000ML
2.Neck Dia:10-45MM
3.Height:35-200MM
4.Body Dia:45-90MM

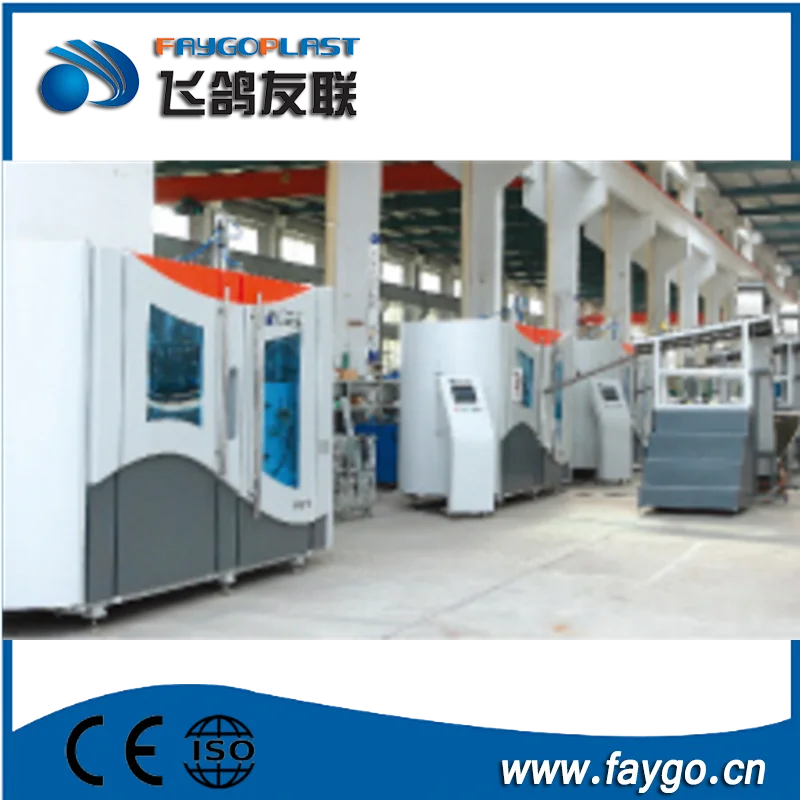

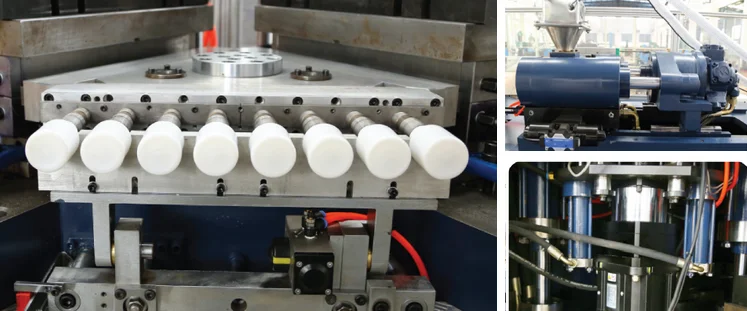

Detailed Images
Certifications
Our customers

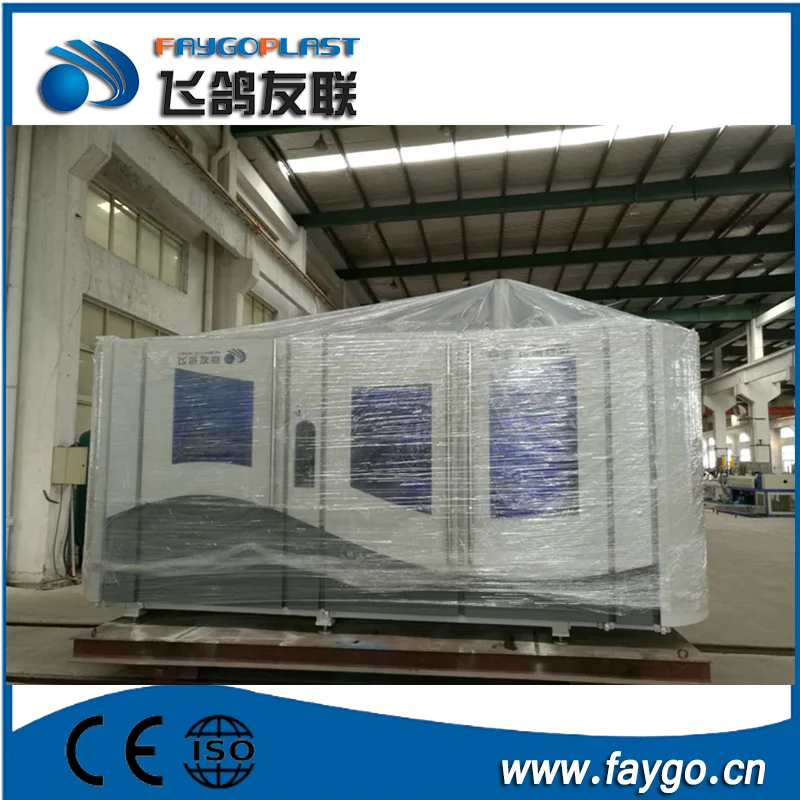

Packing & Delivery
About us

FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.

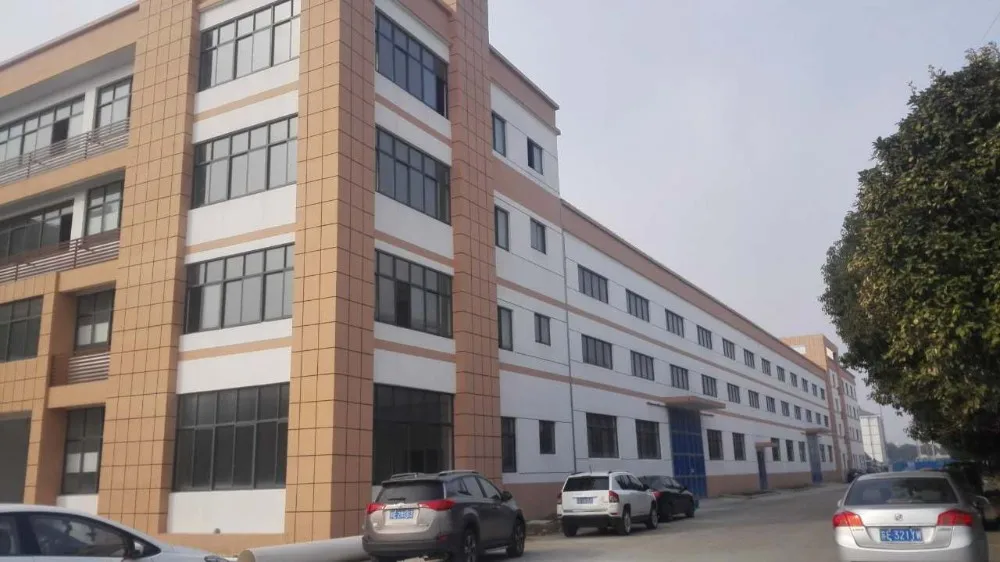

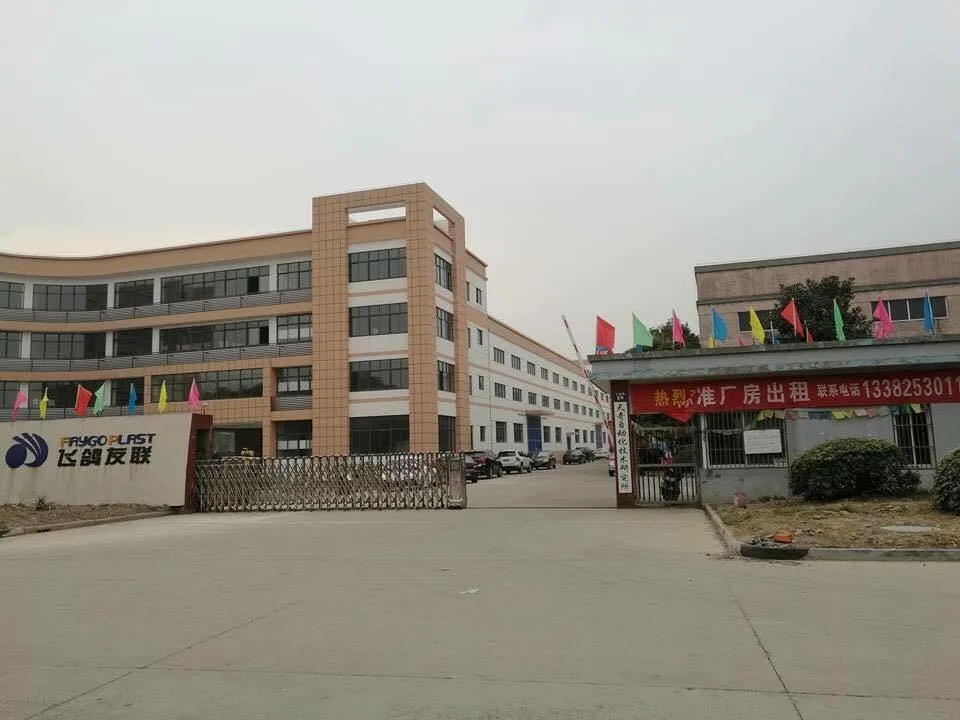

Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
